Din3091/En134411-9

İNDİR
Ürün Görseli

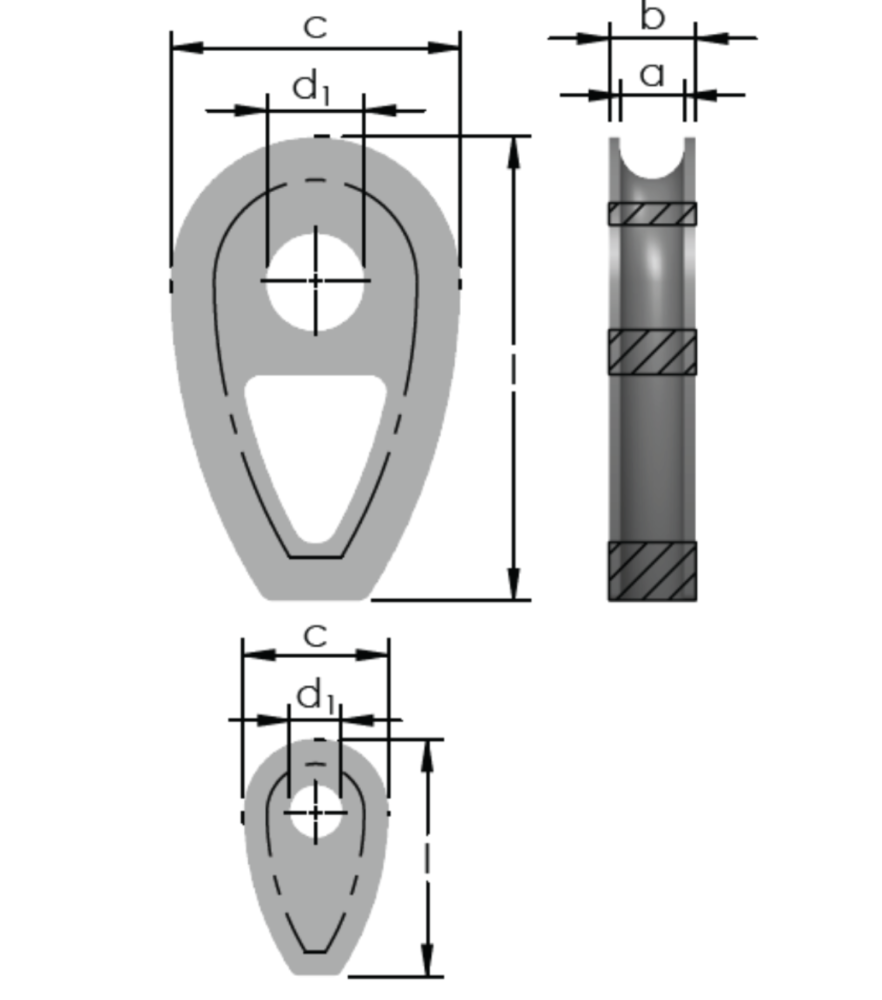

stock no. with nominal size = standard max. possible machined a b ca. mm c I weight per pc.
Filtreleme Tercihleri
standard diameter machined hole max. rope diam.diam. (not machined)diam. in mmmmapprox. mmmmmmkg
110 911 008 110 911 008 8 14 20 9 15 40 66 0,2
Din3091/En134411-9
stock no. with 110 911 008 standard diameter
stock no. with 110 911 008 machined hole
nominal size = 8 max. rope diam.
standard 14 diam. (not machined)
max. possible machined 20 diam. in mm
a 9 mm
b ca. mm 15 approx. mm
c 40 mm
I 66 mm
weight per pc. 0,2 kg
İNDİR
110911010 110911010 10 18 25 11 17,5 50 82 0,3
Din3091/En134411-9
stock no. with 110911010 standard diameter
stock no. with 110911010 machined hole
nominal size = 10 max. rope diam.
standard 18 diam. (not machined)
max. possible machined 25 diam. in mm
a 11 mm
b ca. mm 17,5 approx. mm
c 50 mm
I 82 mm
weight per pc. 0,3 kg
İNDİR
110 911 012 110 911 012 12 21 30 13 20 60 98 0,5
Din3091/En134411-9
stock no. with 110 911 012 standard diameter
stock no. with 110 911 012 machined hole
nominal size = 12 max. rope diam.
standard 21 diam. (not machined)
max. possible machined 30 diam. in mm
a 13 mm
b ca. mm 20 approx. mm
c 60 mm
I 98 mm
weight per pc. 0,5 kg
İNDİR
110 911 014 110 911 014 14 25 35 16 23,5 70 114 0,7
Din3091/En134411-9
stock no. with 110 911 014 standard diameter
stock no. with 110 911 014 machined hole
nominal size = 14 max. rope diam.
standard 25 diam. (not machined)
max. possible machined 35 diam. in mm
a 16 mm
b ca. mm 23,5 approx. mm
c 70 mm
I 114 mm
weight per pc. 0,7 kg
İNDİR
110911016 110911016 16 28 40 18 26 80 130 0,8
Din3091/En134411-9
stock no. with 110911016 standard diameter
stock no. with 110911016 machined hole
nominal size = 16 max. rope diam.
standard 28 diam. (not machined)
max. possible machined 40 diam. in mm
a 18 mm
b ca. mm 26 approx. mm
c 80 mm
I 130 mm
weight per pc. 0,8 kg
İNDİR
110911018 110911018 18 31 45 20 28,5 90 145 1,1
Din3091/En134411-9
stock no. with 110911018 standard diameter
stock no. with 110911018 machined hole
nominal size = 18 max. rope diam.
standard 31 diam. (not machined)
max. possible machined 45 diam. in mm
a 20 mm
b ca. mm 28,5 approx. mm
c 90 mm
I 145 mm
weight per pc. 1,1 kg
İNDİR
110 911 020 110 911 020 20 35 50 22 31 100 161 1,4
Din3091/En134411-9
stock no. with 110 911 020 standard diameter
stock no. with 110 911 020 machined hole
nominal size = 20 max. rope diam.
standard 35 diam. (not machined)
max. possible machined 50 diam. in mm
a 22 mm
b ca. mm 31 approx. mm
c 100 mm
I 161 mm
weight per pc. 1,4 kg
İNDİR
110911022 110911022 22 38 55 24 33,5 110 177 1,8
Din3091/En134411-9
stock no. with 110911022 standard diameter
stock no. with 110911022 machined hole
nominal size = 22 max. rope diam.
standard 38 diam. (not machined)
max. possible machined 55 diam. in mm
a 24 mm
b ca. mm 33,5 approx. mm
c 110 mm
I 177 mm
weight per pc. 1,8 kg
İNDİR
110911024 110911024 24 41 60 26 36 120 193 2,3
Din3091/En134411-9
stock no. with 110911024 standard diameter
stock no. with 110911024 machined hole
nominal size = 24 max. rope diam.
standard 41 diam. (not machined)
max. possible machined 60 diam. in mm
a 26 mm
b ca. mm 36 approx. mm
c 120 mm
I 193 mm
weight per pc. 2,3 kg
İNDİR
110 911 026 110 911 026 26 44 65 29 39,5 130 209 3,0
Din3091/En134411-9
stock no. with 110 911 026 standard diameter
stock no. with 110 911 026 machined hole
nominal size = 26 max. rope diam.
standard 44 diam. (not machined)
max. possible machined 65 diam. in mm
a 29 mm
b ca. mm 39,5 approx. mm
c 130 mm
I 209 mm
weight per pc. 3,0 kg
İNDİR
110911028 110911028 28 47 70 31 42 140 224 3,7
Din3091/En134411-9
stock no. with 110911028 standard diameter
stock no. with 110911028 machined hole
nominal size = 28 max. rope diam.
standard 47 diam. (not machined)
max. possible machined 70 diam. in mm
a 31 mm
b ca. mm 42 approx. mm
c 140 mm
I 224 mm
weight per pc. 3,7 kg
İNDİR
110 911 032 110 911 032 32 53 80 35 47 160 256 5,3
Din3091/En134411-9
stock no. with 110 911 032 standard diameter
stock no. with 110 911 032 machined hole
nominal size = 32 max. rope diam.
standard 53 diam. (not machined)
max. possible machined 80 diam. in mm
a 35 mm
b ca. mm 47 approx. mm
c 160 mm
I 256 mm
weight per pc. 5,3 kg
İNDİR
110911036 110911036 36 59 90 40 53 180 288 7,5
Din3091/En134411-9
stock no. with 110911036 standard diameter
stock no. with 110911036 machined hole
nominal size = 36 max. rope diam.
standard 59 diam. (not machined)
max. possible machined 90 diam. in mm
a 40 mm
b ca. mm 53 approx. mm
c 180 mm
I 288 mm
weight per pc. 7,5 kg
İNDİR
110 911 040 110 911 040 40 65 100 44 58 200 320 10.4
Din3091/En134411-9
stock no. with 110 911 040 standard diameter
stock no. with 110 911 040 machined hole
nominal size = 40 max. rope diam.
standard 65 diam. (not machined)
max. possible machined 100 diam. in mm
a 44 mm
b ca. mm 58 approx. mm
c 200 mm
I 320 mm
weight per pc. 10.4 kg
İNDİR
110911044 110911044 44 70 110 48 63 220 352 13,4
Din3091/En134411-9
stock no. with 110911044 standard diameter
stock no. with 110911044 machined hole
nominal size = 44 max. rope diam.
standard 70 diam. (not machined)
max. possible machined 110 diam. in mm
a 48 mm
b ca. mm 63 approx. mm
c 220 mm
I 352 mm
weight per pc. 13,4 kg
İNDİR
110 911 048 110 911 048 48 76 120 53 69 240 384 17,8
Din3091/En134411-9
stock no. with 110 911 048 standard diameter
stock no. with 110 911 048 machined hole
nominal size = 48 max. rope diam.
standard 76 diam. (not machined)
max. possible machined 120 diam. in mm
a 53 mm
b ca. mm 69 approx. mm
c 240 mm
I 384 mm
weight per pc. 17,8 kg
İNDİR
110 911 052 110 911 052 52 81 130 57 74 260 416 23,1
Din3091/En134411-9
stock no. with 110 911 052 standard diameter
stock no. with 110 911 052 machined hole
nominal size = 52 max. rope diam.
standard 81 diam. (not machined)
max. possible machined 130 diam. in mm
a 57 mm
b ca. mm 74 approx. mm
c 260 mm
I 416 mm
weight per pc. 23,1 kg
İNDİR
110 911 056 110 911 056 56 86 140 62 80 280 448 29,0
Din3091/En134411-9
stock no. with 110 911 056 standard diameter
stock no. with 110 911 056 machined hole
nominal size = 56 max. rope diam.
standard 86 diam. (not machined)
max. possible machined 140 diam. in mm
a 62 mm
b ca. mm 80 approx. mm
c 280 mm
I 448 mm
weight per pc. 29,0 kg
İNDİR
110911064 110911064 64 95 160 70 90 320 512 41,3
Din3091/En134411-9
stock no. with 110911064 standard diameter
stock no. with 110911064 machined hole
nominal size = 64 max. rope diam.
standard 95 diam. (not machined)
max. possible machined 160 diam. in mm
a 70 mm
b ca. mm 90 approx. mm
c 320 mm
I 512 mm
weight per pc. 41,3 kg
İNDİR
110911072 110911072 72 104 180 79 101 360 576 66,0
Din3091/En134411-9
stock no. with 110911072 standard diameter
stock no. with 110911072 machined hole
nominal size = 72 max. rope diam.
standard 104 diam. (not machined)
max. possible machined 180 diam. in mm
a 79 mm
b ca. mm 101 approx. mm
c 360 mm
I 576 mm
weight per pc. 66,0 kg
İNDİR
