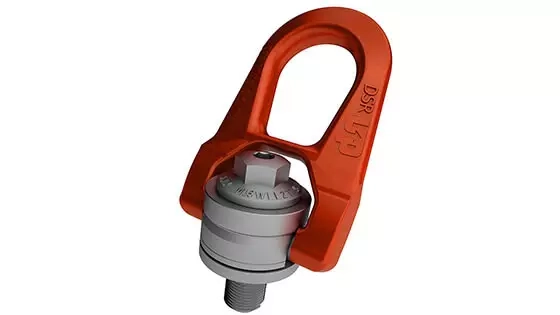

DSR

İNDİR
Ürün Görseli
Reference Diameter SF 5:1 WLL SF 4:1 WLL (t) Standard L1 Torque EH B C D E F G H Weight
Filtreleme Tercihleri
(t)(t)(mm)(Nm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(kg)(lbs)
DSR M 5 UP M 5 (x0,8) 0,07 0,10 15 3 33 30 30 38 27 14 53 9,5 0,3 0.66
DSR
Reference DSR M 5 UP
Diameter M 5 (x0,8)
SF 5:1 WLL 0,07 (t)
SF 4:1 WLL (t) 0,10 (t)
Standard L1 15 (mm)
Torque 3 (Nm)
EH 33
B 30 (mm)
C 30 (mm)
D 38 (mm)
E 27 (mm)
F 14 (mm)
G 53 (mm)
H 53 (mm)
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
DSR M 6 UP M 6 (x1) 0,15 0,20 15 4 33 30 30 38 27 14 53 9,5 0,3 0.66
DSR
Reference DSR M 6 UP
Diameter M 6 (x1)
SF 5:1 WLL 0,15 (t)
SF 4:1 WLL (t) 0,20 (t)
Standard L1 15 (mm)
Torque 4 (Nm)
EH 33
B 30 (mm)
C 30 (mm)
D 38 (mm)
E 27 (mm)
F 14 (mm)
G 53 (mm)
H 53 (mm)
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
DSR M 8 UP M 8 (x1,25) 0,40 0,50 15 6 33 30 30 38 27 14 53 9,5 0,3 0.66
DSR
Reference DSR M 8 UP
Diameter M 8 (x1,25)
SF 5:1 WLL 0,40 (t)
SF 4:1 WLL (t) 0,50 (t)
Standard L1 15 (mm)
Torque 6 (Nm)
EH 33
B 30 (mm)
C 30 (mm)
D 38 (mm)
E 27 (mm)
F 14 (mm)
G 53 (mm)
H 53 (mm)
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
DSR M 10 UP M 10 (x1,5) 0,70 0,90 18 10 33 30 30 38 27 14 53 9,5 0,3 0.66
DSR
Reference DSR M 10 UP
Diameter M 10 (x1,5)
SF 5:1 WLL 0,70 (t)
SF 4:1 WLL (t) 0,90 (t)
Standard L1 18 (mm)
Torque 10 (Nm)
EH 33
B 30 (mm)
C 30 (mm)
D 38 (mm)
E 27 (mm)
F 14 (mm)
G 53 (mm)
H 53 (mm)
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
DSR M 12 UP M 12 (x1,75) 1,05 1,30 21 15 33 30 30 38 27 14 53 9,5 0,3 0.66
DSR
Reference DSR M 12 UP
Diameter M 12 (x1,75)
SF 5:1 WLL 1,05 (t)
SF 4:1 WLL (t) 1,30 (t)
Standard L1 21 (mm)
Torque 15 (Nm)
EH 33
B 30 (mm)
C 30 (mm)
D 38 (mm)
E 27 (mm)
F 14 (mm)
G 53 (mm)
H 53 (mm)
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
DSR M 14 UP M 14 (x2) 1,40 1,80 23 30 45 40 45 53 38 17 76 13 0,9 1.98
DSR
Reference DSR M 14 UP
Diameter M 14 (x2)
SF 5:1 WLL 1,40 (t)
SF 4:1 WLL (t) 1,80 (t)
Standard L1 23 (mm)
Torque 30 (Nm)
EH 45
B 40 (mm)
C 45 (mm)
D 53 (mm)
E 38 (mm)
F 17 (mm)
G 76 (mm)
H 76 (mm)
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
DSR M 16 UP M 16 (x2) 2,00 2,30 27 50 45 40 45 53 38 17 76 13 0,9 1.98
DSR
Reference DSR M 16 UP
Diameter M 16 (x2)
SF 5:1 WLL 2,00 (t)
SF 4:1 WLL (t) 2,30 (t)
Standard L1 27 (mm)
Torque 50 (Nm)
EH 45
B 40 (mm)
C 45 (mm)
D 53 (mm)
E 38 (mm)
F 17 (mm)
G 76 (mm)
H 76 (mm)
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
DSR M 18 UP M 18 (x2,5) 2,30 2,30 27 70 45 40 45 53 38 17 76 13 0,9 1.98
DSR
Reference DSR M 18 UP
Diameter M 18 (x2,5)
SF 5:1 WLL 2,30 (t)
SF 4:1 WLL (t) 2,30 (t)
Standard L1 27 (mm)
Torque 70 (Nm)
EH 45
B 40 (mm)
C 45 (mm)
D 53 (mm)
E 38 (mm)
F 17 (mm)
G 76 (mm)
H 76 (mm)
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
DSR M 20 2t5 UP M 20 (x2,5) 2,50 2,50 30 100 45 40 45 53 38 17 76 13 0,9 1.98
DSR
Reference DSR M 20 2t5 UP
Diameter M 20 (x2,5)
SF 5:1 WLL 2,50 (t)
SF 4:1 WLL (t) 2,50 (t)
Standard L1 30 (mm)
Torque 100 (Nm)
EH 45
B 40 (mm)
C 45 (mm)
D 53 (mm)
E 38 (mm)
F 17 (mm)
G 76 (mm)
H 76 (mm)
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
DSR M 20 3t2 UP M 20 (x2,5) 2,90 3,20 25 100 62 55 60 83 55 25 115 19 2,6 5.73
DSR
Reference DSR M 20 3t2 UP
Diameter M 20 (x2,5)
SF 5:1 WLL 2,90 (t)
SF 4:1 WLL (t) 3,20 (t)
Standard L1 25 (mm)
Torque 100 (Nm)
EH 62
B 55 (mm)
C 60 (mm)
D 83 (mm)
E 55 (mm)
F 25 (mm)
G 115 (mm)
H 115 (mm)
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
DSR M 22 UP M 22 (x2,5) 3,50 4,50 33 120 62 55 60 83 55 25 115 19 2,6 5.73
DSR
Reference DSR M 22 UP
Diameter M 22 (x2,5)
SF 5:1 WLL 3,50 (t)
SF 4:1 WLL (t) 4,50 (t)
Standard L1 33 (mm)
Torque 120 (Nm)
EH 62
B 55 (mm)
C 60 (mm)
D 83 (mm)
E 55 (mm)
F 25 (mm)
G 115 (mm)
H 115 (mm)
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
DSR M 24 UP M 24 (x3) 4,40 5,50 36 160 62 55 60 83 55 25 115 19 2,6 5.73
DSR
Reference DSR M 24 UP
Diameter M 24 (x3)
SF 5:1 WLL 4,40 (t)
SF 4:1 WLL (t) 5,50 (t)
Standard L1 36 (mm)
Torque 160 (Nm)
EH 62
B 55 (mm)
C 60 (mm)
D 83 (mm)
E 55 (mm)
F 25 (mm)
G 115 (mm)
H 115 (mm)
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
DSR M 27 UP M 27 (x3) 5,70 6,00 40 200 62 55 60 83 55 25 115 19 2,7 5.95
DSR
Reference DSR M 27 UP
Diameter M 27 (x3)
SF 5:1 WLL 5,70 (t)
SF 4:1 WLL (t) 6,00 (t)
Standard L1 40 (mm)
Torque 200 (Nm)
EH 62
B 55 (mm)
C 60 (mm)
D 83 (mm)
E 55 (mm)
F 25 (mm)
G 115 (mm)
H 115 (mm)
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
DSR M 30 6t3 UP M 30 (x3,5) 6,00 6,30 45 250 62 55 60 83 55 25 115 19 2,7 5.95
DSR
Reference DSR M 30 6t3 UP
Diameter M 30 (x3,5)
SF 5:1 WLL 6,00 (t)
SF 4:1 WLL (t) 6,30 (t)
Standard L1 45 (mm)
Torque 250 (Nm)
EH 62
B 55 (mm)
C 60 (mm)
D 83 (mm)
E 55 (mm)
F 25 (mm)
G 115 (mm)
H 115 (mm)
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
DSR M 30 8t UP M 30 (x3,5) 6,70 8,00 45 250 80 77 78 98 71 26 141 28 5,4 11.90
DSR
Reference DSR M 30 8t UP
Diameter M 30 (x3,5)
SF 5:1 WLL 6,70 (t)
SF 4:1 WLL (t) 8,00 (t)
Standard L1 45 (mm)
Torque 250 (Nm)
EH 80
B 77 (mm)
C 78 (mm)
D 98 (mm)
E 71 (mm)
F 26 (mm)
G 141 (mm)
H 141 (mm)
Weight 141 (kg)
Weight 141 (lbs)
İNDİR
DSR M 36 UP M 36 (x4) 8,00 8,50 54 320 80 77 78 98 71 26 141 28 5,4 11.90
DSR
Reference DSR M 36 UP
Diameter M 36 (x4)
SF 5:1 WLL 8,00 (t)
SF 4:1 WLL (t) 8,50 (t)
Standard L1 54 (mm)
Torque 320 (Nm)
EH 80
B 77 (mm)
C 78 (mm)
D 98 (mm)
E 71 (mm)
F 26 (mm)
G 141 (mm)
H 141 (mm)
Weight 141 (kg)
Weight 141 (lbs)
İNDİR
DSR M 42 UP M 42 (x4,5) 8,50 9,00 63 400 80 77 78 98 71 26 141 28 5,5 12.13
DSR
Reference DSR M 42 UP
Diameter M 42 (x4,5)
SF 5:1 WLL 8,50 (t)
SF 4:1 WLL (t) 9,00 (t)
Standard L1 63 (mm)
Torque 400 (Nm)
EH 80
B 77 (mm)
C 78 (mm)
D 98 (mm)
E 71 (mm)
F 26 (mm)
G 141 (mm)
H 141 (mm)
Weight 141 (kg)
Weight 141 (lbs)
İNDİR
