SS.FE.DSR

İNDİR
Ürün Görseli Ürün Görseli Ürün Görseli Ürün Görseli Ürün Görseli
Ürün Görseli
Ürün Görseli
Ürün Görseli
Ürün Görseli
Ürün Görseli

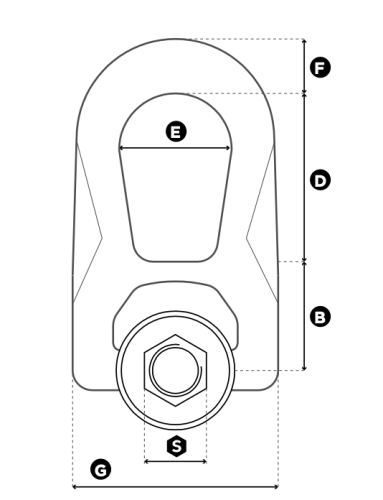

Reference Diameter SF 5:1 WLL SF 4:1 WLL L Maxi Torque A B C D E F G H Weight
Filtreleme Tercihleri
(t)(t)mm(Nm)mmmmmmmmmmmmmmmm(kg)(lbs)
SS.FE.DSR M 8 M 8 (x1,25) 0,30 0,30 43 6 43 40 45 53 38 17 76 13 0,9 1.98
SS.FE.DSR
Reference SS.FE.DSR M 8
Diameter M 8 (x1,25)
SF 5:1 WLL 0,30 (t)
SF 4:1 WLL 0,30 (t)

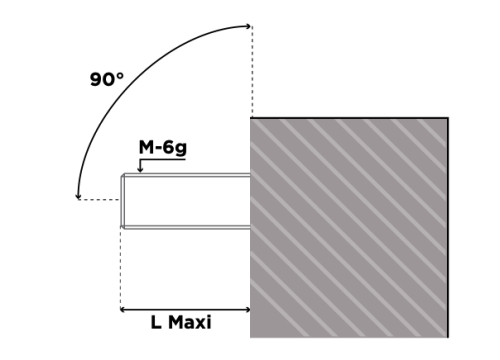

L Maxi 43 mm
Torque 6 (Nm)
A 43 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.FE.DSR M 10 M 10 (x1,50) 0,50 0,50 43 10 43 40 45 53 38 17 76 13 0,9 1.98
SS.FE.DSR
Reference SS.FE.DSR M 10
Diameter M 10 (x1,50)
SF 5:1 WLL 0,50 (t)
SF 4:1 WLL 0,50 (t)
L Maxi 43 mm
Torque 10 (Nm)
A 43 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.FE.DSR M 12 M 12 (x1,75) 0,80 0,80 43 15 43 40 45 53 38 17 76 13 0,9 1.98
SS.FE.DSR
Reference SS.FE.DSR M 12
Diameter M 12 (x1,75)
SF 5:1 WLL 0,80 (t)
SF 4:1 WLL 0,80 (t)
L Maxi 43 mm
Torque 15 (Nm)
A 43 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.FE.DSR M 14 M 14 (x2) 1,00 1,00 43 30 43 40 45 53 38 17 76 13 0,9 1.98
SS.FE.DSR
Reference SS.FE.DSR M 14
Diameter M 14 (x2)
SF 5:1 WLL 1,00 (t)
SF 4:1 WLL 1,00 (t)
L Maxi 43 mm
Torque 30 (Nm)
A 43 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.FE.DSR M 16 M 16 (x2) 1,40 1,50 43 50 43 40 45 53 38 17 76 13 0,9 1.98
SS.FE.DSR
Reference SS.FE.DSR M 16
Diameter M 16 (x2)
SF 5:1 WLL 1,40 (t)
SF 4:1 WLL 1,50 (t)
L Maxi 43 mm
Torque 50 (Nm)
A 43 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.FE.DSR M 18 M 18 (x2,5) 1,40 1,50 62 70 62 55 58 83 56 25 115 19 2,6 5.73
SS.FE.DSR
Reference SS.FE.DSR M 18
Diameter M 18 (x2,5)
SF 5:1 WLL 1,40 (t)
SF 4:1 WLL 1,50 (t)
L Maxi 62 mm
Torque 70 (Nm)
A 62 mm
B 55 mm
C 58 mm
D 83 mm
E 56 mm
F 25 mm
G 115 mm
H 115 mm
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
SS.FE.DSR M 20 M 20 (x2,5) 1,40 1,60 62 100 62 55 58 83 56 25 115 19 2,6 5.73
SS.FE.DSR
Reference SS.FE.DSR M 20
Diameter M 20 (x2,5)
SF 5:1 WLL 1,40 (t)
SF 4:1 WLL 1,60 (t)
L Maxi 62 mm
Torque 100 (Nm)
A 62 mm
B 55 mm
C 58 mm
D 83 mm
E 56 mm
F 25 mm
G 115 mm
H 115 mm
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
SS.FE.DSR M 22 M 22 (x2,5) 2,20 2,20 62 120 62 55 58 83 56 25 115 19 2,6 5.73
SS.FE.DSR
Reference SS.FE.DSR M 22
Diameter M 22 (x2,5)
SF 5:1 WLL 2,20 (t)
SF 4:1 WLL 2,20 (t)
L Maxi 62 mm
Torque 120 (Nm)
A 62 mm
B 55 mm
C 58 mm
D 83 mm
E 56 mm
F 25 mm
G 115 mm
H 115 mm
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
