Göz / Çatal

İNDİR

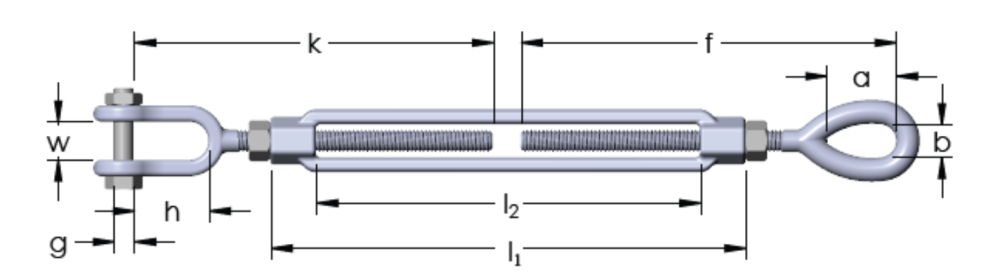

Ürün Görseli
nominal size I1 I2 a b f w h G Zoll k WLL weight per pc.
Filtreleme Tercihleri
inchmmmmmmmmmmmmmminchmmkgkg
3/8 X 6 180 152 28 13 137 12 22 5/16 137 540 0,40
Göz / Çatal
nominal size 3/8 X 6 inch
I1 180 mm
I2 152 mm
a 28 mm
b 13 mm
f 137 mm
w 12 mm
h 22 mm
G Zoll 5/16 inch
k 137 mm
WLL 540 kg
weight per pc. 0,40 kg
İNDİR
1/2 X 6 190 152 36 18 153 16 27 3/8 147 1000 0,70
Göz / Çatal
nominal size 1/2 X 6 inch
I1 190 mm
I2 152 mm
a 36 mm
b 18 mm
f 153 mm
w 16 mm
h 27 mm
G Zoll 3/8 inch
k 147 mm
WLL 1000 kg
weight per pc. 0,70 kg
İNDİR
1/2 X 9 266 228 36 18 193 16 27 3/8 187 1000 0,90
Göz / Çatal
nominal size 1/2 X 9 inch
I1 266 mm
I2 228 mm
a 36 mm
b 18 mm
f 193 mm
w 16 mm
h 27 mm
G Zoll 3/8 inch
k 187 mm
WLL 1000 kg
weight per pc. 0,90 kg
İNDİR
1/2 X 12 342 304 36 18 228 16 27 3/8 222 1000 1,10
Göz / Çatal
nominal size 1/2 X 12 inch
I1 342 mm
I2 304 mm
a 36 mm
b 18 mm
f 228 mm
w 16 mm
h 27 mm
G Zoll 3/8 inch
k 222 mm
WLL 1000 kg
weight per pc. 1,10 kg
İNDİR
5/8 X 6 200 152 44 22 177 19 33 1/2 161 1590 1,20
Göz / Çatal
nominal size 5/8 X 6 inch
I1 200 mm
I2 152 mm
a 44 mm
b 22 mm
f 177 mm
w 19 mm
h 33 mm
G Zoll 1/2 inch
k 161 mm
WLL 1590 kg
weight per pc. 1,20 kg
İNDİR
5/8 X 9 276 228 44 22 217 19 33 1/2 201 1590 1,40
Göz / Çatal
nominal size 5/8 X 9 inch
I1 276 mm
I2 228 mm
a 44 mm
b 22 mm
f 217 mm
w 19 mm
h 33 mm
G Zoll 1/2 inch
k 201 mm
WLL 1590 kg
weight per pc. 1,40 kg
İNDİR
5/8 X 12 352 304 44 22 252 19 33 1/2 236 1590 1,60
Göz / Çatal
nominal size 5/8 X 12 inch
I1 352 mm
I2 304 mm
a 44 mm
b 22 mm
f 252 mm
w 19 mm
h 33 mm
G Zoll 1/2 inch
k 236 mm
WLL 1590 kg
weight per pc. 1,60 kg
İNDİR
3/4 X 6 210 152 54 25 196 23 38 1/2 173 2360 1,90
Göz / Çatal
nominal size 3/4 X 6 inch
I1 210 mm
I2 152 mm
a 54 mm
b 25 mm
f 196 mm
w 23 mm
h 38 mm
G Zoll 1/2 inch
k 173 mm
WLL 2360 kg
weight per pc. 1,90 kg
İNDİR
3/4 X 9 287 228 54 25 236 23 38 5/8 213 2360 2,20
Göz / Çatal
nominal size 3/4 X 9 inch
I1 287 mm
I2 228 mm
a 54 mm
b 25 mm
f 236 mm
w 23 mm
h 38 mm
G Zoll 5/8 inch
k 213 mm
WLL 2360 kg
weight per pc. 2,20 kg
İNDİR
3/4 X 12 362 304 54 25 271 23 38 5/8 248 2360 2,60
Göz / Çatal
nominal size 3/4 X 12 inch
I1 362 mm
I2 304 mm
a 54 mm
b 25 mm
f 271 mm
w 23 mm
h 38 mm
G Zoll 5/8 inch
k 248 mm
WLL 2360 kg
weight per pc. 2,60 kg
İNDİR
3/4 X 18 515 457 54 25 351 23 38 5/8 328 2360 3,20
Göz / Çatal
nominal size 3/4 X 18 inch
I1 515 mm
I2 457 mm
a 54 mm
b 25 mm
f 351 mm
w 23 mm
h 38 mm
G Zoll 5/8 inch
k 328 mm
WLL 2360 kg
weight per pc. 3,20 kg
İNDİR
7/8 X 12 372 304 60 31 287 28 44 5/8 266 3270 3,80
Göz / Çatal
nominal size 7/8 X 12 inch
I1 372 mm
I2 304 mm
a 60 mm
b 31 mm
f 287 mm
w 28 mm
h 44 mm
G Zoll 5/8 inch
k 266 mm
WLL 3270 kg
weight per pc. 3,80 kg
İNDİR
7/8 X 18 524 457 60 31 367 28 44 3/4 346 3270 4,70
Göz / Çatal
nominal size 7/8 X 18 inch
I1 524 mm
I2 457 mm
a 60 mm
b 31 mm
f 367 mm
w 28 mm
h 44 mm
G Zoll 3/4 inch
k 346 mm
WLL 3270 kg
weight per pc. 4,70 kg
İNDİR
1 X 12 381 304 76 36 323 30 52 3/4 286 4540 5,30
Göz / Çatal
nominal size 1 X 12 inch
I1 381 mm
I2 304 mm
a 76 mm
b 36 mm
f 323 mm
w 30 mm
h 52 mm
G Zoll 3/4 inch
k 286 mm
WLL 4540 kg
weight per pc. 5,30 kg
İNDİR
1 X 18 533 457 76 36 403 30 52 7/8 366 4540 6,50
Göz / Çatal
nominal size 1 X 18 inch
I1 533 mm
I2 457 mm
a 76 mm
b 36 mm
f 403 mm
w 30 mm
h 52 mm
G Zoll 7/8 inch
k 366 mm
WLL 4540 kg
weight per pc. 6,50 kg
İNDİR
11/4x 12 387 304 90 46 360 44 71 7/8 330 6890 9,20
Göz / Çatal
nominal size 11/4x 12 inch
I1 387 mm
I2 304 mm
a 90 mm
b 46 mm
f 360 mm
w 44 mm
h 71 mm
G Zoll 7/8 inch
k 330 mm
WLL 6890 kg
weight per pc. 9,20 kg
İNDİR
11/4x 18 540 457 90 46 440 44 71 1 1/8 380 6890 11,00
Göz / Çatal
nominal size 11/4x 18 inch
I1 540 mm
I2 457 mm
a 90 mm
b 46 mm
f 440 mm
w 44 mm
h 71 mm
G Zoll 1 1/8 inch
k 380 mm
WLL 6890 kg
weight per pc. 11,00 kg
İNDİR
1 1/4 X 24 693 610 90 46 495 44 71 1 1/8 479 6890 12,90
Göz / Çatal
nominal size 1 1/4 X 24 inch
I1 693 mm
I2 610 mm
a 90 mm
b 46 mm
f 495 mm
w 44 mm
h 71 mm
G Zoll 1 1/8 inch
k 479 mm
WLL 6890 kg
weight per pc. 12,90 kg
İNDİR
11/2x 12 400 304 104 54 390 52 71 1 3/8 360 9710 14,30
Göz / Çatal
nominal size 11/2x 12 inch
I1 400 mm
I2 304 mm
a 104 mm
b 54 mm
f 390 mm
w 52 mm
h 71 mm
G Zoll 1 3/8 inch
k 360 mm
WLL 9710 kg
weight per pc. 14,30 kg
İNDİR
11/2x 18 550 457 104 54 465 52 71 1 3/8 430 9710 16,90
Göz / Çatal
nominal size 11/2x 18 inch
I1 550 mm
I2 457 mm
a 104 mm
b 54 mm
f 465 mm
w 52 mm
h 71 mm
G Zoll 1 3/8 inch
k 430 mm
WLL 9710 kg
weight per pc. 16,90 kg
İNDİR
1 1/2 X 24 703 610 104 54 540 52 71 1 3/8 496 9710 18,70
Göz / Çatal
nominal size 1 1/2 X 24 inch
I1 703 mm
I2 610 mm
a 104 mm
b 54 mm
f 540 mm
w 52 mm
h 71 mm
G Zoll 1 3/8 inch
k 496 mm
WLL 9710 kg
weight per pc. 18,70 kg
İNDİR
1 3/4x 18 570 457 117 59 475 60 86 1 3/4 440 12700 22,80
Göz / Çatal
nominal size 1 3/4x 18 inch
I1 570 mm
I2 457 mm
a 117 mm
b 59 mm
f 475 mm
w 60 mm
h 86 mm
G Zoll 1 3/4 inch
k 440 mm
WLL 12700 kg
weight per pc. 22,80 kg
İNDİR
1 3/4 X 24 720 610 117 59 577 60 86 1 3/4 500 12700 27,50
Göz / Çatal
nominal size 1 3/4 X 24 inch
I1 720 mm
I2 610 mm
a 117 mm
b 59 mm
f 577 mm
w 60 mm
h 86 mm
G Zoll 1 3/4 inch
k 500 mm
WLL 12700 kg
weight per pc. 27,50 kg
İNDİR
2 X 24 735 610 143 67 632 64 95 2 540 16780 40,80
Göz / Çatal
nominal size 2 X 24 inch
I1 735 mm
I2 610 mm
a 143 mm
b 67 mm
f 632 mm
w 64 mm
h 95 mm
G Zoll 2 inch
k 540 mm
WLL 16780 kg
weight per pc. 40,80 kg
İNDİR
2 1/2 X 24 800 610 165 79 665 73 113 21/2 580 27220 75,50
Göz / Çatal
nominal size 2 1/2 X 24 inch
I1 800 mm
I2 610 mm
a 165 mm
b 79 mm
f 665 mm
w 73 mm
h 113 mm
G Zoll 21/2 inch
k 580 mm
WLL 27220 kg
weight per pc. 75,50 kg
İNDİR
