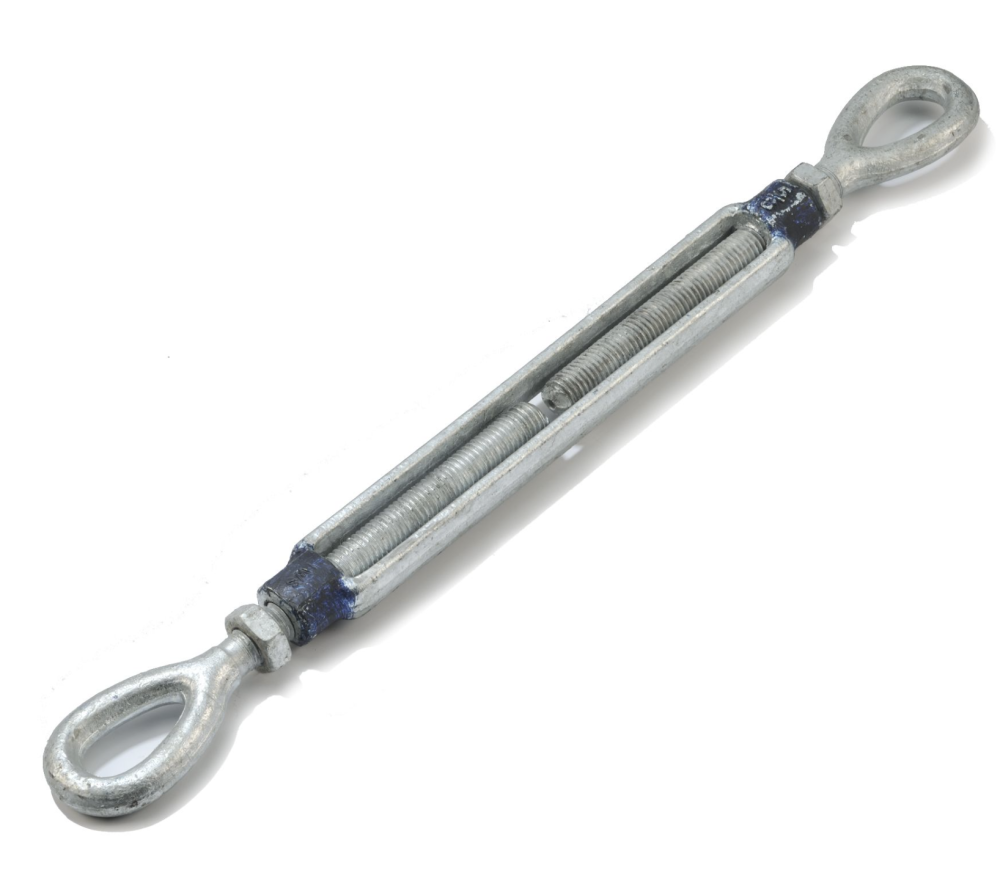

Lewis high tensile rigging screw / eye-eye

Ürün Görseli
S WLL D do lo bo Min Max Weight
inchtoninchmmmmmmmmmmkg/piece
6 0,55 3/8 9 28 13 290 440 0,34
Lewis high tensile rigging screw / eye-eye
S 6 inch
WLL 0,55 ton
D 3/8 inch
do 9 mm
lo 28 mm
bo 13 mm
Min 290 mm
Max 440 mm
Weight 0,34 kg/piece
6 1 1/2 12 36 18 330 480 0,64
Lewis high tensile rigging screw / eye-eye
S 6 inch
WLL 1 ton
D 1/2 inch
do 12 mm
lo 36 mm
bo 18 mm
Min 330 mm
Max 480 mm
Weight 0,64 kg/piece
9 1 1/2 12 36 18 405 630 0,76
Lewis high tensile rigging screw / eye-eye
S 9 inch
WLL 1 ton
D 1/2 inch
do 12 mm
lo 36 mm
bo 18 mm
Min 405 mm
Max 630 mm
Weight 0,76 kg/piece
12 1 1/2 12 36 18 482 782 0,96
Lewis high tensile rigging screw / eye-eye
S 12 inch
WLL 1 ton
D 1/2 inch
do 12 mm
lo 36 mm
bo 18 mm
Min 482 mm
Max 782 mm
Weight 0,96 kg/piece
6 1,6 5/8 14 44 22 375 525 1,18
Lewis high tensile rigging screw / eye-eye
S 6 inch
WLL 1,6 ton
D 5/8 inch
do 14 mm
lo 44 mm
bo 22 mm
Min 375 mm
Max 525 mm
Weight 1,18 kg/piece
9 1,6 5/8 14 44 22 450 675 1,38
Lewis high tensile rigging screw / eye-eye
S 9 inch
WLL 1,6 ton
D 5/8 inch
do 14 mm
lo 44 mm
bo 22 mm
Min 450 mm
Max 675 mm
Weight 1,38 kg/piece
12 1,6 5/8 14 44 22 526 826 1,76
Lewis high tensile rigging screw / eye-eye
S 12 inch
WLL 1,6 ton
D 5/8 inch
do 14 mm
lo 44 mm
bo 22 mm
Min 526 mm
Max 826 mm
Weight 1,76 kg/piece
6 2,36 3/4 17 52 25 415 565 1,8
Lewis high tensile rigging screw / eye-eye
S 6 inch
WLL 2,36 ton
D 3/4 inch
do 17 mm
lo 52 mm
bo 25 mm
Min 415 mm
Max 565 mm
Weight 1,8 kg/piece
9 2,36 3/4 17 52 25 490 715 2,17
Lewis high tensile rigging screw / eye-eye
S 9 inch
WLL 2,36 ton
D 3/4 inch
do 17 mm
lo 52 mm
bo 25 mm
Min 490 mm
Max 715 mm
Weight 2,17 kg/piece
12 2,36 3/4 17 52 25 560 860 2,44
Lewis high tensile rigging screw / eye-eye
S 12 inch
WLL 2,36 ton
D 3/4 inch
do 17 mm
lo 52 mm
bo 25 mm
Min 560 mm
Max 860 mm
Weight 2,44 kg/piece
18 2,36 3/4 17 52 25 720 1170 2,44
Lewis high tensile rigging screw / eye-eye
S 18 inch
WLL 2,36 ton
D 3/4 inch
do 17 mm
lo 52 mm
bo 25 mm
Min 720 mm
Max 1170 mm
Weight 2,44 kg/piece
12 3,27 7/8 20 59 31 592 885 3,38
Lewis high tensile rigging screw / eye-eye
S 12 inch
WLL 3,27 ton
D 7/8 inch
do 20 mm
lo 59 mm
bo 31 mm
Min 592 mm
Max 885 mm
Weight 3,38 kg/piece
18 3,27 7/8 20 59 31 750 1200 4,42
Lewis high tensile rigging screw / eye-eye
S 18 inch
WLL 3,27 ton
D 7/8 inch
do 20 mm
lo 59 mm
bo 31 mm
Min 750 mm
Max 1200 mm
Weight 4,42 kg/piece
6 4,54 1 22 75 37 517 668 4,05
Lewis high tensile rigging screw / eye-eye
S 6 inch
WLL 4,54 ton
D 1 inch
do 22 mm
lo 75 mm
bo 37 mm
Min 517 mm
Max 668 mm
Weight 4,05 kg/piece
12 4,54 1 22 75 37 656 943 5,25
Lewis high tensile rigging screw / eye-eye
S 12 inch
WLL 4,54 ton
D 1 inch
do 22 mm
lo 75 mm
bo 37 mm
Min 656 mm
Max 943 mm
Weight 5,25 kg/piece
18 4,54 1 22 75 37 819 1269 6,25
Lewis high tensile rigging screw / eye-eye
S 18 inch
WLL 4,54 ton
D 1 inch
do 22 mm
lo 75 mm
bo 37 mm
Min 819 mm
Max 1269 mm
Weight 6,25 kg/piece
