Din741

İNDİR
Ürün Görseli

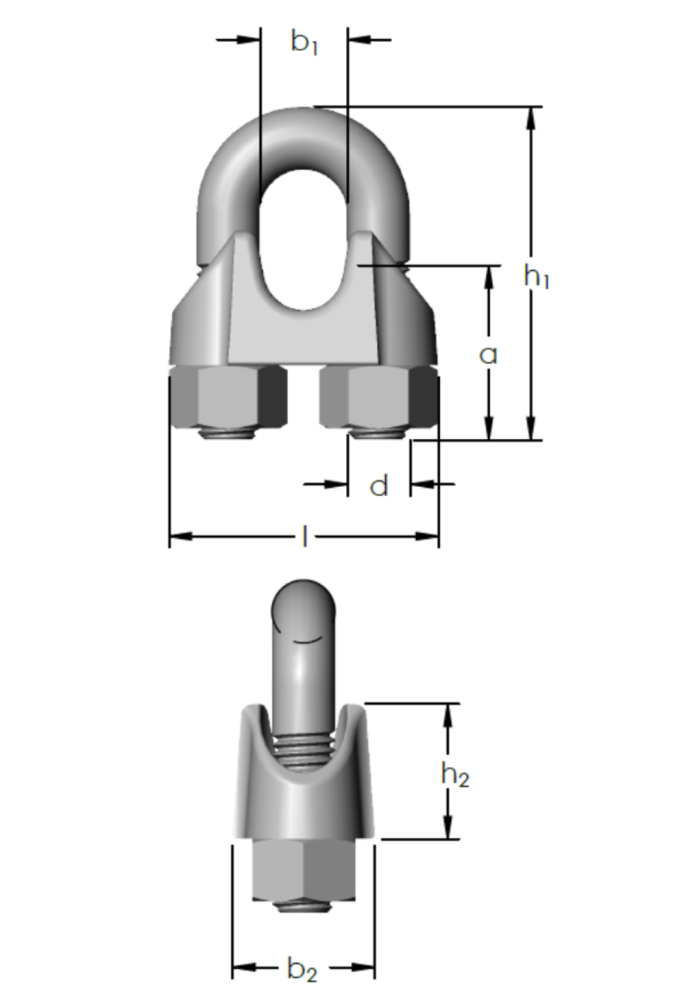

nominal size max.rope a b1 b2 d h1 h2 I units per weight per 100 pcs.
Filtreleme Tercihleri
mminchØ mmmmmmmmmmmmmmbox/bagkg
3 1/8 3 12 5 10 M4 20 10 21 100 0,7
Din741
nominal size 3 mm
nominal size 1/8 inch
max.rope 3 Ø mm
a 12 mm
b1 5 mm
b2 10 mm
d M4
h1 20 mm
h2 10 mm
I 21 mm
units per 100 box/bag
weight per 100 pcs. 0,7 kg
İNDİR
5 3/16 5 13 6 11 M5 24 10 23 100 1,5
Din741
nominal size 5 mm
nominal size 3/16 inch
max.rope 5 Ø mm
a 13 mm
b1 6 mm
b2 11 mm
d M5
h1 24 mm
h2 10 mm
I 23 mm
units per 100 box/bag
weight per 100 pcs. 1,5 kg
İNDİR
6,5 1/4 6,5 15 8 12 M5 28 11 26 100 1,9
Din741
nominal size 6,5 mm
nominal size 1/4 inch
max.rope 6,5 Ø mm
a 15 mm
b1 8 mm
b2 12 mm
d M5
h1 28 mm
h2 11 mm
I 26 mm
units per 100 box/bag
weight per 100 pcs. 1,9 kg
İNDİR
8 5116 8 19 10 14 M6 34 15 30 100 3,2
Din741
nominal size 8 mm
nominal size 5116 inch
max.rope 8 Ø mm
a 19 mm
b1 10 mm
b2 14 mm
d M6
h1 34 mm
h2 15 mm
I 30 mm
units per 100 box/bag
weight per 100 pcs. 3,2 kg
İNDİR
10 3/8 10 22 11 18 M8 42 17 34 50 6,6
Din741
nominal size 10 mm
nominal size 3/8 inch
max.rope 10 Ø mm
a 22 mm
b1 11 mm
b2 18 mm
d M8
h1 42 mm
h2 17 mm
I 34 mm
units per 50 box/bag
weight per 100 pcs. 6,6 kg
İNDİR
11 7/16 11 22 12 19 M8 44 18 36 50 7,1
Din741
nominal size 11 mm
nominal size 7/16 inch
max.rope 11 Ø mm
a 22 mm
b1 12 mm
b2 19 mm
d M8
h1 44 mm
h2 18 mm
I 36 mm
units per 50 box/bag
weight per 100 pcs. 7,1 kg
İNDİR
13 1/2 13 30 14 23 M10 55 21 42 25 12.5
Din741
nominal size 13 mm
nominal size 1/2 inch
max.rope 13 Ø mm
a 30 mm
b1 14 mm
b2 23 mm
d M10
h1 55 mm
h2 21 mm
I 42 mm
units per 25 box/bag
weight per 100 pcs. 12.5 kg
İNDİR
14 9/16 14 30 15 23 M10 57 22 44 200 14,0
Din741
nominal size 14 mm
nominal size 9/16 inch
max.rope 14 Ø mm
a 30 mm
b1 15 mm
b2 23 mm
d M10
h1 57 mm
h2 22 mm
I 44 mm
units per 200 box/bag
weight per 100 pcs. 14,0 kg
İNDİR
16 518 16 33 17 26 M12 63 26 50 100 20,5
Din741
nominal size 16 mm
nominal size 518 inch
max.rope 16 Ø mm
a 33 mm
b1 17 mm
b2 26 mm
d M12
h1 63 mm
h2 26 mm
I 50 mm
units per 100 box/bag
weight per 100 pcs. 20,5 kg
İNDİR
19 3/4 19 38 20 29 M12 75 30 54 100 30,8
Din741
nominal size 19 mm
nominal size 3/4 inch
max.rope 19 Ø mm
a 38 mm
b1 20 mm
b2 29 mm
d M12
h1 75 mm
h2 30 mm
I 54 mm
units per 100 box/bag
weight per 100 pcs. 30,8 kg
İNDİR
22 7/8 22 44 23 33 M14 85 34 61 50 35,7
Din741
nominal size 22 mm
nominal size 7/8 inch
max.rope 22 Ø mm
a 44 mm
b1 23 mm
b2 33 mm
d M14
h1 85 mm
h2 34 mm
I 61 mm
units per 50 box/bag
weight per 100 pcs. 35,7 kg
İNDİR
26 1 26 45 27 35 M14 95 37 65 50 56,9
Din741
nominal size 26 mm
nominal size 1 inch
max.rope 26 Ø mm
a 45 mm
b1 27 mm
b2 35 mm
d M14
h1 95 mm
h2 37 mm
I 65 mm
units per 50 box/bag
weight per 100 pcs. 56,9 kg
İNDİR
30 1 1/8 30 50 32 37 M16 110 43 74 25 61,8
Din741
nominal size 30 mm
nominal size 1 1/8 inch
max.rope 30 Ø mm
a 50 mm
b1 32 mm
b2 37 mm
d M16
h1 110 mm
h2 43 mm
I 74 mm
units per 25 box/bag
weight per 100 pcs. 61,8 kg
İNDİR
34 1 1/4 34 55 36 42 M16 120 50 80 25 86,8
Din741
nominal size 34 mm
nominal size 1 1/4 inch
max.rope 34 Ø mm
a 55 mm
b1 36 mm
b2 42 mm
d M16
h1 120 mm
h2 50 mm
I 80 mm
units per 25 box/bag
weight per 100 pcs. 86,8 kg
İNDİR
40 1 1/2 40 60 42 45 M16 140 55 88 25 109,0
Din741
nominal size 40 mm
nominal size 1 1/2 inch
max.rope 40 Ø mm
a 60 mm
b1 42 mm
b2 45 mm
d M16
h1 140 mm
h2 55 mm
I 88 mm
units per 25 box/bag
weight per 100 pcs. 109,0 kg
İNDİR
45 1 3/4 45 75 47 49 M18 165 60 96 148,0
Din741
nominal size 45 mm
nominal size 1 3/4 inch
max.rope 45 Ø mm
a 75 mm
b1 47 mm
b2 49 mm
d M18
h1 165 mm
h2 60 mm
I 96 mm
units per
weight per 100 pcs. 148,0 kg
İNDİR
50 2 50 77 52 53 M20 175 67 105 195,0
Din741
nominal size 50 mm
nominal size 2 inch
max.rope 50 Ø mm
a 77 mm
b1 52 mm
b2 53 mm
d M20
h1 175 mm
h2 67 mm
I 105 mm
units per
weight per 100 pcs. 195,0 kg
İNDİR
